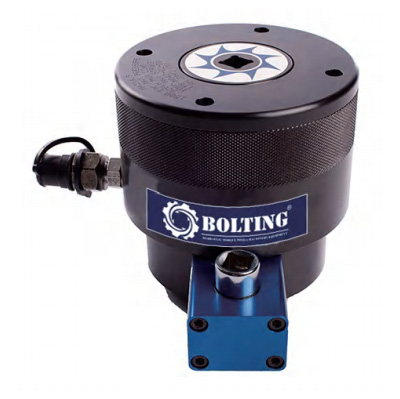

緊湊、可靠的拉伸器，密封圈經單獨機械加工，密封可靠性強，采用聚氨酯自激式密封，無需調節，長期使用也不會導致機械失效；
|
型號 |
螺栓直徑 |
拉伸力 |
油壓面積 |

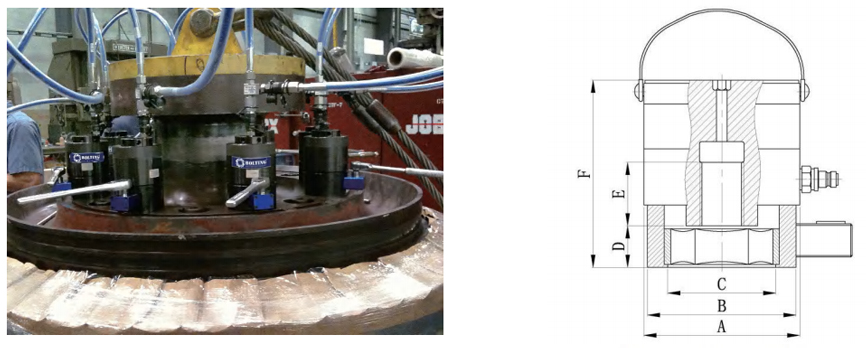

A |
B |
C |
D |
E |
F |
行程 |
|
SHT18 |
M18 |
140 |
1256 |
70 |
60 |
45 |
29 |
/ |
140 |
8 |
|
SHT24 |
M24 |
240 |
1500 |
80 |
68 |
50 |
35 |
/ |
140 |
8 |
|
SHT27 |
M27 |
305 |
1906 |
90 |
75 |
55 |
38 |
/ |
150 |
8 |
|
SHT30 |
M30 |
340 |
2125 |
95 |
79 |
55 |
38 |
/ |
150 |
8 |
|
SHT36 |
M36 |
455 |
2845 |
105 |
82 |
62 |
45 |
/ |
151 |
8 |
|
SHT39 |
M39 |
565 |
3532 |
110 |
88 |
70 |
45 |
/ |
151 |
8 |
|
SHT42 |
M42 |
682 |
4262 |
118 |
90 |
72 |
45 |
/ |
151 |
8 |
|
SHT48 |
M48 |
855 |
5341 |
130 |
102 |
80 |
51 |
/ |
171 |
8 |
|
SHT56 |
M56 |
1159 |
7245 |
155 |
120 |
95 |
60 |
/ |
200 |
8 |
|
SHT64 |
M64 |
1624 |
10151 |
178 |
136 |
107 |
67 |
/ |
225 |
10 |
|
SHT72 |
M72 |
2165 |
13528 |
205 |
152 |
120 |
77 |
/ |
225 |
10 |
|
SHT80 |
M80 |
2551 |
15944 |
220 |
172 |
135 |
85 |
/ |
280 |
10 |
|
SHT90 |
M90 |
3578 |
22364 |
260 |
195 |
153 |
95 |
/ |
310 |
10 |
|
SHT100 |
M100 |
3619 |
22619 |
270 |
210 |
165 |
105 |
/ |
340 |
10 |
|
SHT105 |
M105 |
4526 |
28287 |
280 |
220 |
175 |
110 |
/ |
350 |
10 |
|
SHT110 |
M110 |
5027 |
31416 |
300 |
230 |
180 |
115 |
/ |
370 |
10 |
|
SHT125 |
M125 |
6220 |
38877 |
340 |
260 |
205 |
130 |
/ |
420 |
10 |
|
SHT140 |
M140 |
7540 |
47124 |
380 |
290 |
230 |
145 |
/ |
465 |
10 |
|
SHT150 |
M150 |
8985 |
56156 |
420 |
302 |
247 |
157 |
/ |
500 |
12 |
|
SHT160 |
M160 |
9312 |
58198 |
430 |
315 |
255 |
167 |
/ |
530 |
12 |
|
SHT170 |
M170 |
10556 |
65973 |
460 |
335 |
270 |
177 |
/ |
560 |
12 |
